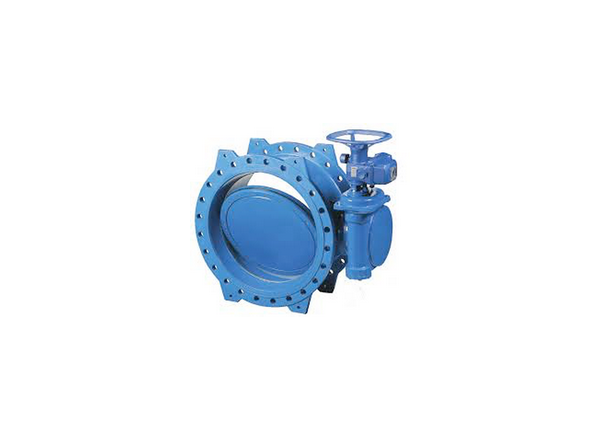

Double Flanged Double Eccentric Butterfly Valve

As with the flanged gate valve, the butterfly valve is used to shut off a pipeline. By opening the valve, the disc will allow water to flow into the pipe, while in the closed position, it will block the passage of the liquid in question with a complete seal. By using a handwheel for example, the operation of this double eccentric valve is simple and quick to use.

These types of valves, which are easy to transport thanks to their light weight (compared to other types of valves), can be used in drinking water supply networks (AEP) as well as in fire protection and waste water treatment.

Apart from the handwheel or operating square, the butterfly valve can be controlled by a lever or by a pneumatic or electric actuator.

Interhydro is involved in many projects requiring several butterfly valves, for example in Algeria or Cameroon.


Characteristics of the double flanged butterfly valve

Body: Cast iron
Coating: Epoxy
DN : We offer a wide range, from DN 150 to DN 3000.
PFA : PN 10 - 16 - 25 - 40 bar
Closing direction : Clockwise Closing (FSH) or Anti-Clockwise Closing (FAH)
Butterfly material:  cast iron or stainless steel on request.
Manoeuvrability :  With gearbox and handwheel (or square) or with electric actuator or lever on request.

Complies with current European standards.

Drinking water approval.

We also have a wide range of accessories for butterfly valves:

  • Opening/closing indicator

  • With rising outer stem

  • Stationary extension

  • Manoeuvring shaft

  • Mouthpiece head with key

  • Keyhole tube

  • Tabernacle


Contact us for more information or a technical quote!
