Specific valve

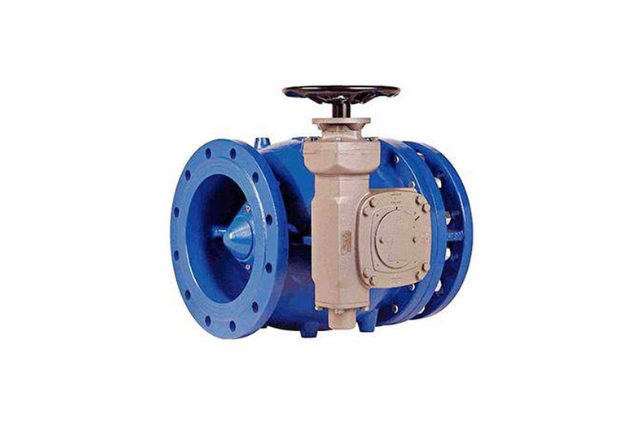

Plunger valve
Device allowing to reduce the pressure or to regulate a flow rate with a very high precision and reliability over time.
Characteristics of Plunger valve
| Body : | Cast iron |
| Coating : | Epoxy |
| DN : | 100 to 2000 flanged (other DN on request) |
| PFA | 10 to 160 bars |
| Choice of insertion : | aileron crown, slotted cylinder, perforated cylinder |
Noiseless cavitation control
Low pressure drop.
High speed: up to 7 m/s.
Optional electric actuator and control module.
Hollow jet valve
Device to help dissipate energy during dam drainage.
Characteristics of Hollow jet valve
| DN : | 150 to 2400 (other DN on request) |
| PFA : | 10 to 100 bars |
Gearbox and handwheel control, electric actuator and control module, hydraulic cylinder.
Disc shutter (under hood or flooded)
A device for locally dissipating energy in a reservoir or for controlling the water level in the reservoir according to the volume consumed downstream. We have a range from DN 32 to DN 500.
Balanced or control valve
A device for adjusting the pressure or flow rate by varying the opening percentage.
Characteristics of balanced and control valve
| DN : | 50 to 150 |
| PFA : | 10 to 40 bars |
| Control: | Handwheel, Control module |
Multi-jet regulating and control valve
Device allowing to adjust the pressure losses of a circuit with a minimum of disturbance and allowing the adjustment of the flow rate or pressure.
Characteristics of Multi-jet regulating and control valve
| DN : | 50 à 150 |
| PFA : | 10 to 40 bars |
| Ordering : | Handwheel, regulation module |
Contact us for more information or a technical quotation!
Would you like a quotation for this product?
Our team will provide you with the best technical and financial offer corresponding to your request for drinking water connections.
